Sparton Technology NEMA 6P Amphibian Enclosures

Our amphibian enclosures meet the harsh NEMA 6P standards required to withstand prolonged submersion in floodwaters. Each enclosure is fully tested under positive air pressure at 5 PSI for 24 hours.

When a situation calls for the need to keep sensitive components safe from water and moisture intrusion, our amphibian enclosures are uniquely suited to the task.

Standard NEMA 6P Enclosure Characteristics

Sparton Technology Corporation's proprietary NEMA 6P enclosures house and protect your sensitive components from water and moisture in a variety of environments. These enclosures can be used in commercial or industrial settings and may be deployed for use in water treatment plants, nuclear plants, flood zones and industries including energy, agriculture, marine and oil and gas. These amphibian enclosures may be used indoors or outdoors.

Provides protection in a prolonged submersion, at a limited depth.
Protection the external formation of ice.
Made from water corrosion resistant materials.

Sparton's Enclosure Designs

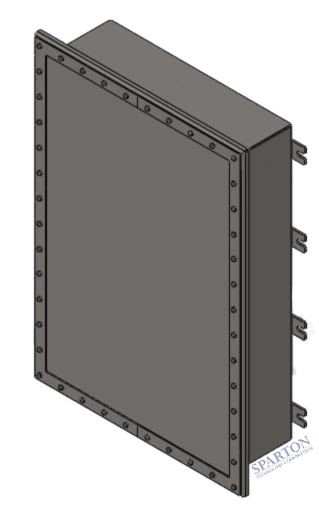

Sparton offers two basic standard external flange designs.

Mini-Amphibian series enclosures for smaller enclosures
Amphibian series enclosures for larger enclosures.

We also offer custom designed internal flange and torpedo style enclosures. By far, our most popular enclosures are the Mini-Amphibian and Amphibian Series. View the Model Specs.

Common to all submersible, amphibian enclosures is our utilization of a series of bolts applying a specific pressure to seamless gaskets.

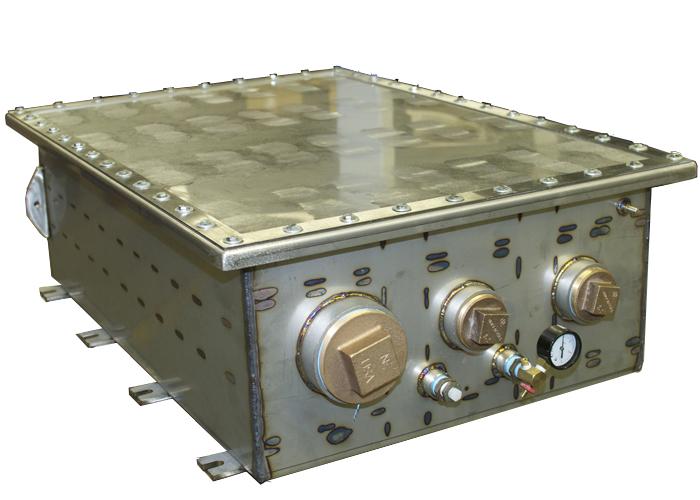

Standard Ports Available on NEMA 6P Enclosures

These are half couplings welded onto the enclosure faces. The standard method configuration is to put all of these on one end face of the enclosure. These are also called hubs, and they are used to make sealed connections into the enclosure, using rigid conduit with NPT threads and sealing paste.

1/2"

3/4"

1-1/2"

2"

2-1/2"

4"

nema 6p enclosure

NEMA 6P Amphibian Enclosure Model Specs.

Model Number	Interior	Std. Material	Back	UL	Lead Time
AES-121211-xxx	10x10x9	304 SST	Optional	Yes	6 Weeks
AES-121811-xxx	10x18x9	304 SST	Optional	Yes	6 Weeks
AES-181811-xxx	16x16x9	304 SST	Optional	Yes	6 Weeks
AES-242411-xxx	22x22x9	304 SST	Optional	Yes	6 Weeks
AES-243612-xxx	20x32x8	304 SST	Optional	Yes	8-10 Weeks
AES-374218-xxx	23x38x10	304 SST	Optional	No	8-10 Weeks
AES-364814-xxx	32x44x10	304 SST	Optional	No	8-10 Weeks
AES-276014-xxx	23x54x10	316 SST	Optional	No	10 Weeks
AES-517520-xxx	47x71x16	316 SST	Optional	No	10 Weeks

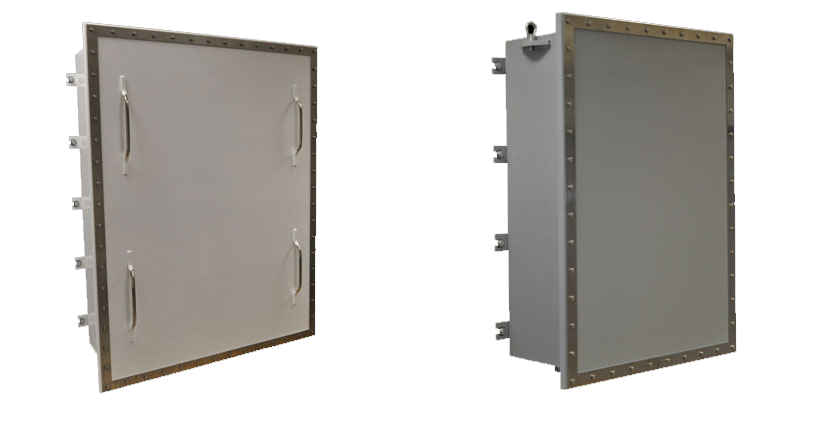

Amphibian Enclosure Series

Size Range	Materials	Gasket	Standard Finish	Lead Time
12"x12"x6" to as large as 55" x 100" x 20"	10g (.135") Type 304 or 316 SST (choice)	Custom cut single piece flat gasket	White is Standard, Gray is also available	8-10 Weeks (Some Enclosures are Quick Ship)

Mini Amphibian Series

The Mini-Amphibian Series includes smaller enclosures. The design concept is very similar to the larger Amphibian series, listed below, but scaled down in every way.

Size Range	Materials	Gasket	Standard Finish	Lead Time
3"x5"x3" to as large as 9" x 9" x 6"	16 Gauge, Type 316 Stainless Steel	Custom cut single piece flat gasket	White is Standard, Gray is also available	6-8 Weeks

Custom NEMA 6 Amphibian Series

The Custom Amphibian Series includes two custom shaped enclosures......

Example	Enclosure Style	Advantages	Disadvantages
	Torpedo Shaped	Potentially Most Durable, Simple, Compact	Longer Lead Time, Limited Sizes

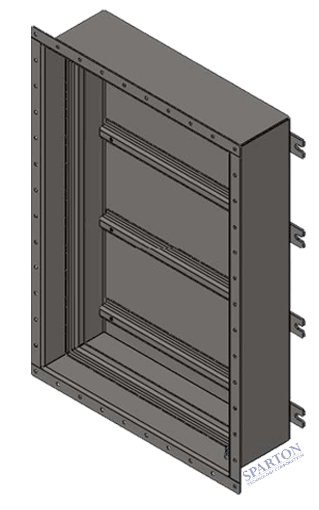

	Internal Flange	Most Attractive Design	Cost, More Complicated Design, Longer Lead Time
